Top 10 DIN Rail Transformers Issues & Troubleshooting Guide

Let’s talk about transformers (and no, we don’t mean car-shifting robots). In a previous post, we discussed the benefits of the DIN rail mountable transformer, how to choose one, and a brief guide on installation. Although these compact devices are easy to use, safe, and cost-effective, they can have issues like any other component in your lighting controls or other systems.

Tracing and correcting any faults in your lighting and control systems is essential to the day-to-day and long-term functioning of your entire building. Don’t let any straws break the camel’s back. In this post, you’ll learn how to diagnose and resolve common transformer issues and when to call in the professionals.

Speaking of pros, our team at Functional Devices works hard to ensure our DIN rail mountable transformers and other industrial-grade components don’t develop problems (at least not for a long time!). That’s why we test every device we make before it leaves our facility. Reach out to learn more about our product quality pledge.

Signs of DIN Rail Mountable Transformer Malfunction

Before we jump into troubleshooting, you must know what to look for. Here are some signs that your transformer isn’t performing as it should:

  1. Unusual noises (humming, buzzing, etc.)
  2. Overheating or excessive heat generation
  3. Voltage fluctuations/ripple voltage
  4. Power delivery inconsistencies or output voltage issues
  5. Physical signs (discoloration, corrosion, or damage)
  6. Tripped circuit breakers or blown fuses

If you observe any of these signs, it’s time to turn off the power and investigate the cause and source.

Common Transformer Issues and Their Causes

After noticing the symptoms, you need to diagnose the root issue. But first, you need to know what those issues might be. Here are the most common problems your DIN rail mountable transformer might experience and why.

Input Voltage Problems

Issue

The input voltage the transformer receives is incorrect or unstable.

Why Does It Happen?

  • Power surges, drops in voltage, or fluctuations in the power supply
  • Incorrect voltage rating or improper wiring during installation
  • Faulty upstream electrical components, such as breakers or relays

Overloading

Issue

Excessive electrical load causes the transformer to overheat or fail.

Why Does It Happen?

  • Load exceeds the transformer’s rated capacity
  • Long-term overcurrent conditions without proper protection mechanisms
  • Miscalculation of the system’s total power requirements

Loose or Faulty Connections

Issue

Inefficient operation or power interruptions result from poor connections.

Power disruptions or inefficient operation due to faulty connections.

Why Does It Happen?

  • Improperly installed on the DIN rail
  • Vibration or movement loosening connections over time
  • Corroded terminals due to moisture or environmental exposure

Damage by Environmental Factors

Issue

External environmental conditions affect the transformer’s performance.

Why Does It Happen?

  • Excessive dust or dirt blocking ventilation
  • High ambient temperatures lead to overheating
  • Moisture or humidity causing corrosion or short circuits
  • Installation in an environment with poor airflow or near heat sources

Insulation Degradation

Issue

Insulation breakdown causes transformer coiled windings to fail.

Why Does It Happen?

  • Aging of materials past their prime
  • Excessive heat weakening insulation
  • Mechanical/physical damage during installation or maintenance

Noise or Vibrations

Issue

The transformer produces excessive noise or vibrations.

Why Does It Happen?

  • Loose mounting or brackets
  • Harmonic distortion (change in the waveform) in the power supply
  • Core saturation due to incorrect voltage or load

Output Voltage Inconsistencies

Issue

Output voltage is unstable, low, or completely absent.

Why Does It Happen?

  • Faulty windings or internal connections
  • Incorrect or faulty wiring on the output side
  • Load with highly variable power demands

Tripped Breakers or Blown Fuses

Issue

The transformer trips circuit breakers or blows fuses frequently.

Why Does It Happen?

  • Short circuits in the windings or external wiring
  • Overcurrent conditions from excessive load
  • Electrical faults in downstream devices or circuits

Mechanical Damage

Issue

The transformer or its components are physically damaged.

Why Does It Happen?

  • Dropping or mishandling during installation
  • Wear and tear from vibrations
  • Improper mounting on the DIN rail

Poor Ventilation or Overheating

Issue

The transformer overheats, leading to performance degradation or failure.

Why Does It Happen?

  • Installation in an enclosed space without proper airflow
  • Ambient temperatures raised by nearby heat-emitting equipment
  • Blocked ventilation slots or insufficient cooling mechanisms

As you can see, you may encounter quite a few problems with transformers (many of them human error), so it’s essential to know how to troubleshoot.

Step-by-Step Troubleshooting Guide

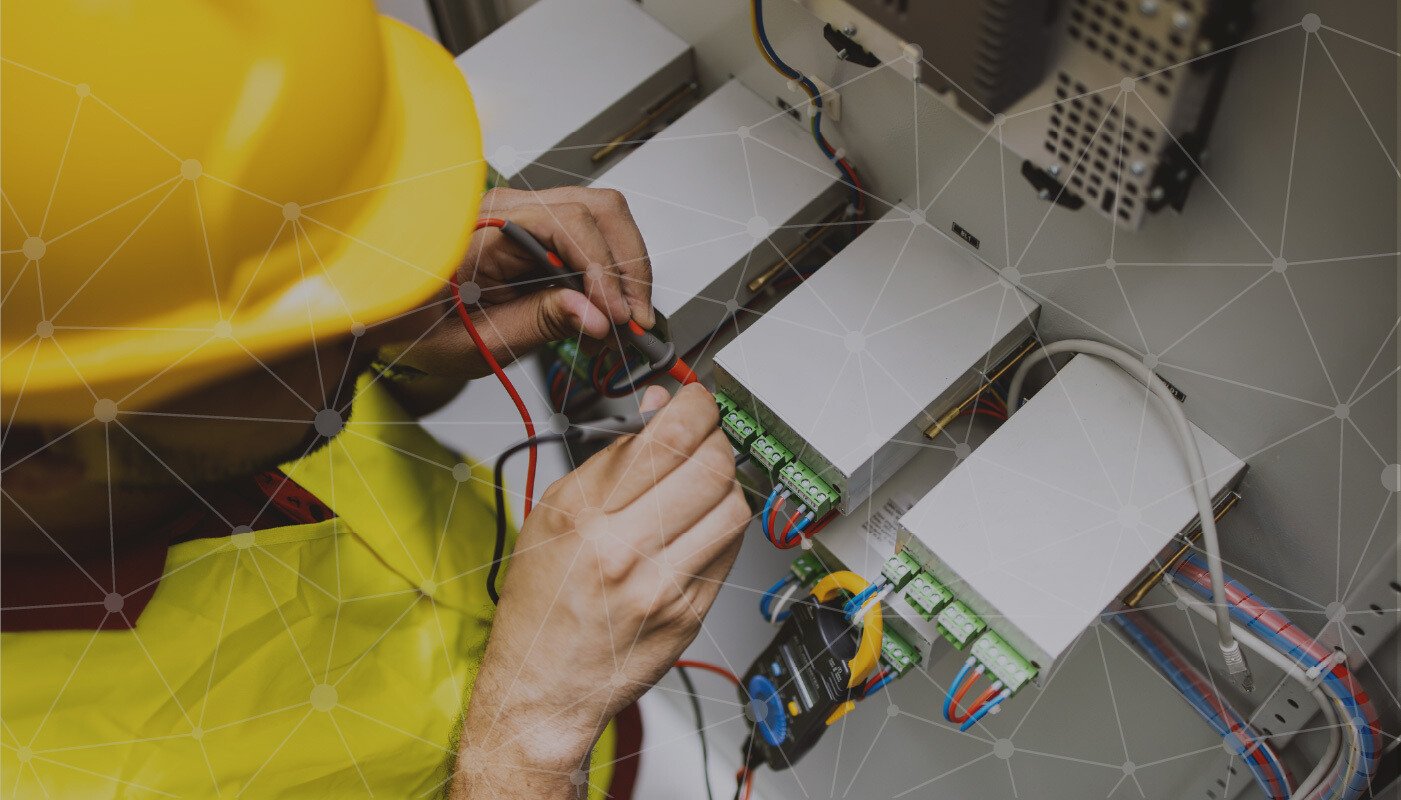

DIN Rail Transformer step-by-step troubleshooting

You’ve noticed the signs, and you know the possible root causes. Now, it’s time to follow a diagnostic protocol step by step.

  • Initial inspection. Shut off the power supply and check for visible damage, loose connections, corrosion, or any other sign that something isn’t right.
  • Verify input and output voltage. Use a multimeter to confirm that the input voltage matches the transformer’s specifications—test the output voltage to identify inconsistencies. If the voltages do not match, discontinue using the transformer and contact a manufacturer for assistance.
  • Examine load conditions. Ensure the load is within the transformer’s rated capacity. Disconnect and test the transformer without the load to isolate whether the issue is caused by the load conditions or the transformer itself. If the load is above the rated capacity, discontinue the use of the transformer and contact a manufacturer for assistance.
  • Inspect wiring and installation. Confirm proper wiring and mounting on the DIN rail according to the manufacturer’s diagram. Tighten any loose connections or screws and replace damaged wires.
  • Environmental assessment. Ensure adequate ventilation and remove any obstructions: clean dust or moisture buildup. Monitor the conditions surrounding the enclosure and consider relocating components as necessary.
  • Test components. Measure resistance in windings. Inspect fuses, circuit breakers, or thermal protectors and replace them as necessary.

After following these steps, you should have fixed the problem or at least isolated it. If the issue persists after these steps, you may need to consult a professional.

Troubleshooting can usually fix transformer issues caused by human error, such as incorrect installation or placement. However, if the problem persists, the transformer or specific components may need to be replaced.

Depend on Functional Devices for Troubleshooting Assistance

Regular maintenance of your electrical systems will help you stop common issues before they begin and improve your system’s overall reliability. If you’re already noticing the signs of a problem, troubleshoot carefully and take proactive care to extend the lifespan of your electrical devices.

Our engineers at Functional Devices would be happy to help you diagnose transformer issues and find solutions that fit your needs and budget. Whether you need tips on regular maintenance or help solving unexpected problems, we’re here for you! Contact us today for troubleshooting assistance or information on our line of transformers.
