At Functional Devices, we make a lot of… well, functional devices. One of them is the RIBXGTA-ECM. Now, ECM could mean Equity Capital Markets or Electronically Commutated Motor. We tried economics once. It didn’t stick… so, let’s stick with motors.
Electronically Commutated Motors (ECMs) are the new standard for high-efficiency HVAC and industrial equipment, but monitoring them can be tricky. Traditional current sensors often struggle to tell the difference between standby and running current, leading to false readings and control headaches.
The RIBXGTA-ECM Current Sensor from Functional Devices, a trusted manufacturer of industrial control and automation solutions for over 50 years, solves these challenges with low-current sensitivity, small hysteresis, and a design tailored to ECM applications. Learn more about the RIBXGTA-ECM and contact us for a quote.
Let’s explore why ECMs pose unique monitoring challenges, how the RIBXGTA-ECM addresses them, and how to install it for the most reliable performance.
Understanding ECMs and Their Monitoring Challenges
ECMs revolutionize efficiency but complicate current monitoring. Brushless, electronically controlled motors that use internal circuitry to manage speed and torque, ECMs draw power even at rest, creating a standby current that’s always present.
Under low load or low-speed conditions, the running current may be only slightly above standby, making it difficult for many current sensors to tell the two states apart. In addition, ECMs can produce transient spikes or electrical noise, adding another layer of complexity. Recognizing these unique characteristics is the first step in selecting the right sensor for accurate ECM monitoring.
Key Features of the RIBXGTA-ECM
The RIBXGTA-ECM is purpose-built to detect low-current conditions and minimize false readings. Key features include:
- Adjustable Low Trip Point. Detects current starting at just 0.25 A, making it ideal for ECM standby/run differentiation.
- Small Hysteresis Band (~15% differential). Maintains a clear distinction between “on” and “off” without chatter or drift.
- Split-Core Design. Allows installation without disconnecting wires—perfect for retrofits.
- Rugged Environmental Ratings. Operates from –30°F to 140°F and in 5–95% non-condensing humidity, suiting a wide range of applications.
- Self-Powered with Solid-State Output. No external power needed for sensing; provides clean SPST contact closure.
Together, these features give technicians a reliable, easy-to-install solution for monitoring even the trickiest ECM applications.
Why Hysteresis and Sensitivity Matter
Small details like hysteresis and sensitivity can make or break a current sensor’s performance. Many generic current switches have high minimum trip points or wide hysteresis bands. If an ECM draws 0.25 A on standby and 0.35 A when running, a typical sensor may fail to recognize the motor is active or it may chatter between states.
The RIBXGTA-ECM’s low threshold and tight hysteresis prevent these issues, ensuring accurate detection even under light loads or gradual speed ramps. By fine-tuning these two characteristics, the RIBXGTA-ECM stands apart from conventional current sensors.
Installation and Setup Best Practices
Proper installation and threshold setting are critical to getting reliable data from any current sensor. Follow these best practices:
- Measure Standby and Running Current. Record both at the lowest operational speed to understand your system’s baseline.
- Set Trip Point Above Standby. Adjust slightly higher than the highest standby current but lower than the lowest running current.
- Test Under Real Conditions. Simulate dirty filters, changing static pressure, or speed ramps to verify sensor response.
- Mount Securely. Use the split-core clamp, avoid running other conductors nearby, and respect environmental limits.
Taking a few minutes to measure and adjust upfront will reward you with stable, accurate motor status signals.
Limitations and Considerations
Even the best sensor works best when its limits are understood. While the RIBXGTA-ECM excels at low-current detection, extremely small standby currents (below 0.25 A) may still be difficult to differentiate. Ambient temperature and electrical noise can slightly shift the trip point over time, so periodic verification is advised in critical systems. Transient spikes from ECM drives should also be accounted for during setup to avoid false positives.
Knowing these constraints helps ensure the sensor performs as expected over the long term.
Real-World Use Cases
The RIBXGTA-ECM proves its value in common, real-world applications.
- HVAC Blower Monitoring. Detects fan operation even when filters are clean and static pressure low.
- Building Automation Systems (BAS). Integrate ECM status signals into energy dashboards or fault detection systems.
- Fault Prevention. Spot unusual drops in running current that may signal mechanical or electrical problems.
These examples show how the sensor’s precision enables smarter maintenance, energy management.
Comparison with Alternatives
Understanding how the RIBXGTA-ECM stacks up against other solutions clarifies its advantages.
Compared to current transformers or hall-effect sensors, the RIBXGTA-ECM offers simpler installation, no external power, and a built-in switch output, perfect for straightforward on/off status detection. Traditional current switches are cheaper but lack the low-current sensitivity and tight hysteresis needed for ECM monitoring.
By combining precision and simplicity, the RIBXGTA-ECM hits a sweet spot few other devices can match.
FAQ About the RIBXGTA-ECM
Q: What makes the RIBXGTA-ECM ideal for ECM motors?
A: The RIBXGTA-ECM is specifically designed to detect the subtle difference between an ECM's standby current and its run current. This is achieved through a small hysteresis band, allowing for accurate monitoring even when the motor's current draw is minimal.
Q: How low can the RIBXGTA-ECM detect current?
A: It can detect currents as low as 0.25 amps, making it suitable for applications with low standby currents.
Q: What is the maximum current the sensor can handle?
A: The sensor can handle currents up to 150 amps, providing versatility for various applications.
Q: Does the RIBXGTA-ECM require an external power supply?
A: No, it operates without the need for an external power supply, simplifying installation and reducing additional equipment needs.
Q: What type of output does the sensor provide?
A: The RIBXGTA-ECM offers a normally open (N/O) solid-state contact output, which closes when the sensed current exceeds the set threshold.
Q: How is the sensor installed?

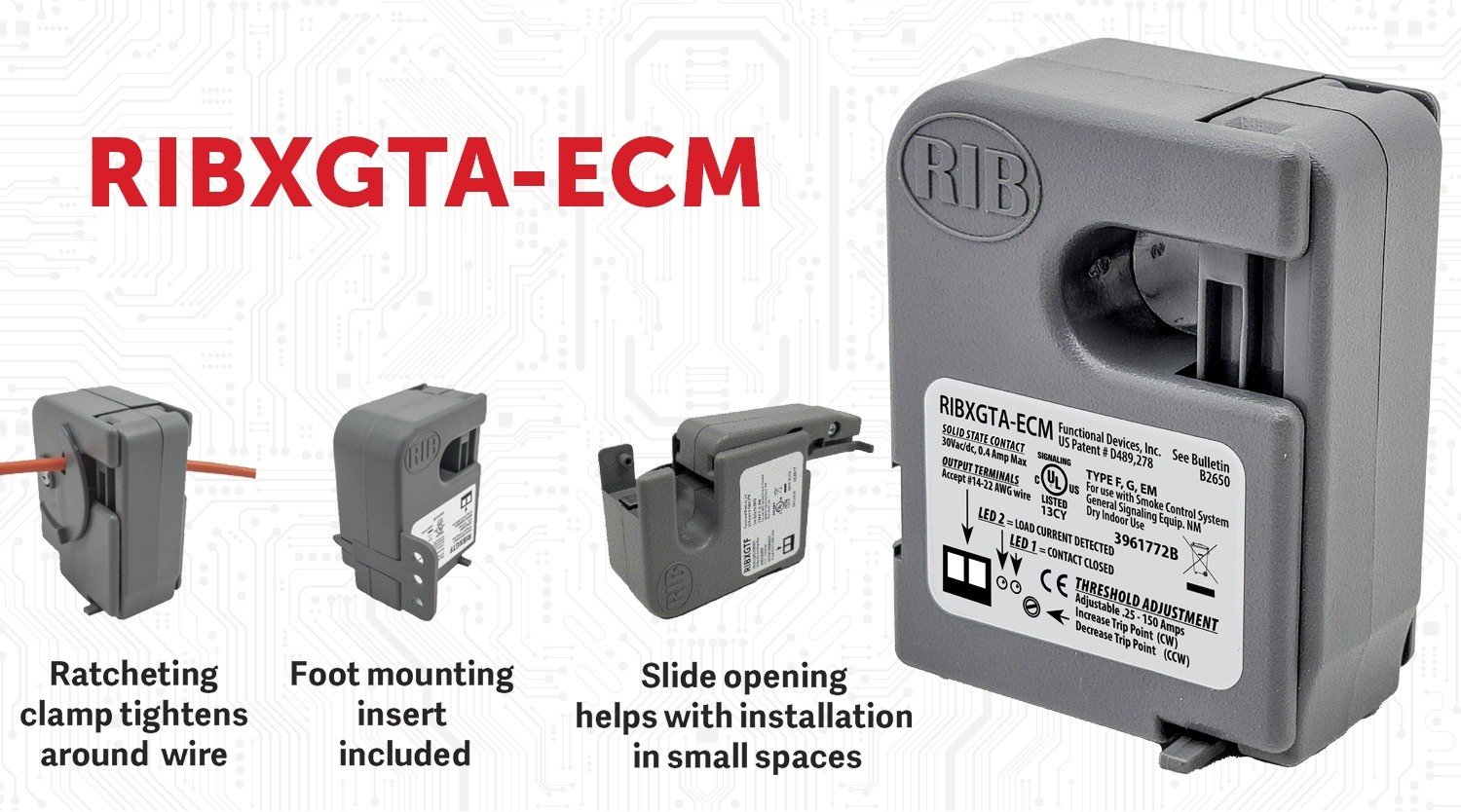

A: The sensor features a split-core design with a removable mounting tab and a ratcheting cam clamp, allowing for easy installation without the need to disconnect wiring.
Q: What is the operating temperature range?
A: The sensor operates within a temperature range of -30°F to 140°F (-34°C to 60°C), suitable for most indoor environments.
Q: Is there a warranty on the RIBXGTA-ECM?
A: Yes, the sensor comes with a 5-year warranty, reflecting our confidence in its durability and performance.
Simplify ECM Monitoring with Functional Devices
Reliable ECM monitoring doesn’t have to be complicated. The RIBXGTA-ECM Current Sensor makes it easy to distinguish between standby and running currents, even under light loads or variable conditions. With proper setup and awareness of its limitations, the RIBXGTA-ECM is a precise, dependable choice for ECM monitoring and a valuable addition to any automation toolkit.
Functional Devices provides a full portfolio of control and monitoring solutions, helping engineers and technicians solve complex automation challenges with reliable, easy-to-use products. Browse our line of automation components or request a quote today to see how these sensors can improve your system’s efficiency and reliability.
