RIB Current Sensors for Easy Installation & Wire Monitoring

E2021 Tech Tuesday Blog Banner 2019 Self-Calibrating Current Switches

Do you remember when critical engine components could be easily accessed by simply opening the car hood? Well I don't, but my Dad calls those the "good old days." Routine car maintenance and oil changes were so much simpler and less oil was spilled! That simplicity points directly to quality product engineering, and our RIB current sensors were designed with just that. Quality engineering right here in America! We take pride in the meticulous designing of our products, and we have the customer feedback to support it. Continue reading to learn about the features and benefits of our split core current sensors, and how they stack up against the competition.

RIB Current Sensors Product Size

When it comes to installing any of our RIB® products, the end user certainly takes size into consideration. In most cases, the smaller the product, the easier it is to install. As you can see below, our split core current sensors are smaller than your standard business card. In fact, it will completely hide behind one! About as deep as a couple packs of your favorite chewing gum, these split core current sensors are sure to fit in a junction box with room to spare.

Split Core Opening

We wanted to make the method of opening the split core as easy and space-saving as possible. That led our Engineering Team to develop a slide opening, as compared to a hinged opening, to insert a wire to be monitored. This split core opening is just one of many features.

As you can see, at least an inch of extra space will be enough to open the split core to then route the load wire through the current sensor opening.

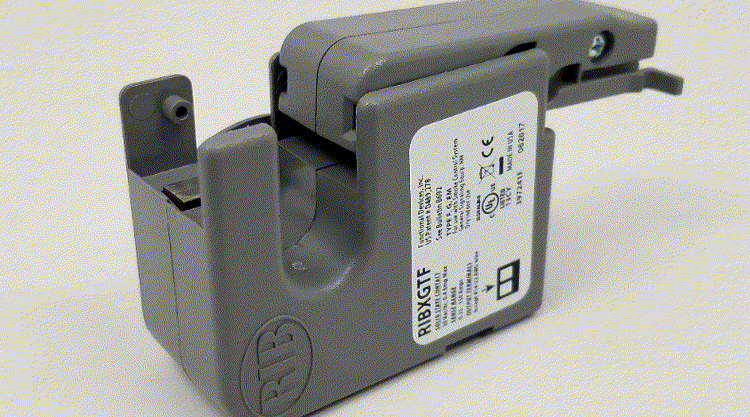

RIB Split Core Current Sensor Slide Opening

With such a small current sensor and an intuitive way of opening the split core, how could this product get any better? We found the way!

Ratcheting Wire Clamp

Another great feature of the RIB® current sensors is the integrated ratcheting wire clamp on the housing. Let's suppose the current sensor is being used in a spacious enclosure on a short length of hanging wire. To keep the current sensor from sliding around on that wire, a wire clamp may be tightened against the wire. Now the current sensor can be installed on a vertical run of wire and not slide down! The opening of the split core current sensor can monitor a wire that is up to half an inch in diameter, which can take you into the 0-gauge wire size, depending on the wire insulation thickness.

RIB Current Sensor Wire Clamp



Current Sensors Built for Building Automation Systems

In the world of building automation, reliable monitoring and control start with accurate sensing, and that’s exactly where our RIB® current sensors excel. Their compact size, intuitive slide opening, and ratcheting wire clamp design make them practical for tight panels while providing the precise feedback needed for effective building automation systems. Whether you’re monitoring fan status, verifying pump operation, or integrating energy tracking into your facility’s control strategy, these sensors simplify installation while delivering dependable performance you can trust.

Using well-designed current sensors within your building automation solutions enables smarter control and monitoring without adding unnecessary complexity to your projects. When paired with control relays or integrated directly into your monitoring system, these sensors help facility teams automate response to equipment operation, improve energy efficiency, and support preventative maintenance programs. It’s one more way Functional Devices helps make building automation more effective, giving you the tools you need to build systems that are efficient, reliable, and easy to maintain.

The next time you're hunting for a dependable current sensor to install in your project, consider the RIB® split core current sensors. They are sure to meet the requirements and are engineered with the end user in mind! If you have any questions, feel free to give us a call or shoot over an email. We are always happy to help.



Confidence and Peace of Mind

Functional Devices, Inc., located in the United States of America, has been designing and manufacturing quality electronic devices since 1969. Our mission is to enhance lives in buildings and beyond. We do so by designing and manufacturing reliable, high-quality products for the building automation industry.  Our suite of product offerings include RIB relays, current sensors, power controls, power supplies, transformers, lighting controls, and more.

We test 100% of our products, which leads to less than 1 out of every 16,000 products experiencing a failure in the field.
