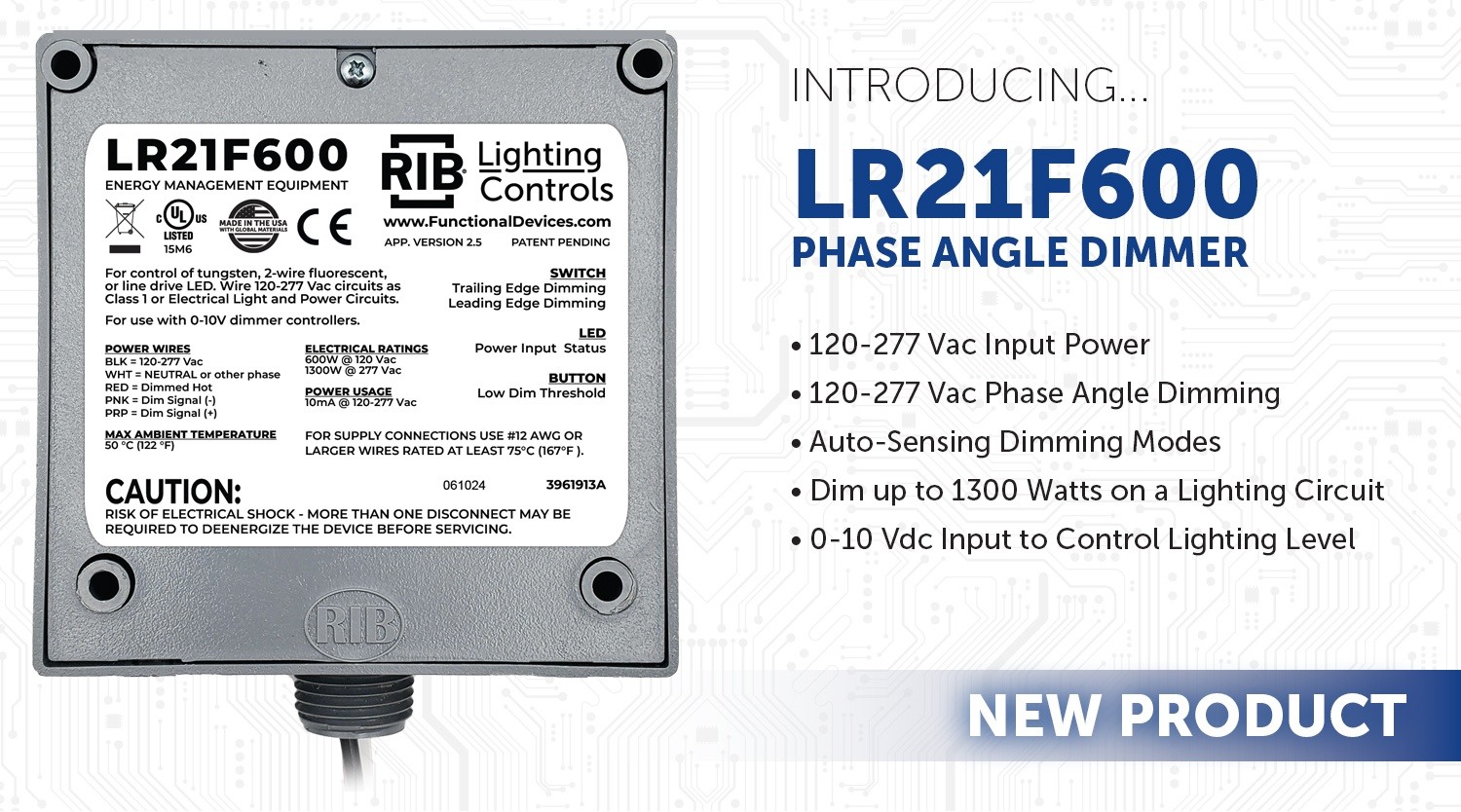

Lighting control is central to building automation, and phase dimmers remain one of the most flexible ways to manage lighting levels. The LR21F600 Phase Dimmer from Functional Devices stands out for its wide input voltage range, auto-sensing dimming modes, and easy-to-program threshold. Whether upgrading an existing circuit or designing a new system, the LR21F600 is built for reliability and efficiency.
Functional Devices has been manufacturing American-made building automation components for decades, including relays, sensors, dimmers, and more. Its focus on quality and installer-friendly design helps contractors and engineers complete projects faster and with fewer callbacks. Contact the team directly to explore the LR21F600 or other lighting control solutions.
Now, let’s get to know the LR21F600.
Why the LR21F600 Matters
Traditional dimmers often limit users to specific voltages or require multiple SKUs for different applications. The LR21F600 solves this by combining a wide voltage range, large load capacity, and a 0–10 VDC control input all in a single device. This means fewer change orders, fewer mistakes, and a smoother installation process.
Key Features and Capabilities
The LR21F600 combines several powerful features into one dimmer. These include:
- Wide input power range (120–277 VAC). Works across diverse building systems without modification.
- Full phase dimming (120–277 VAC). Eliminates the need for different dimmers for different applications.
- Analog 0–10 VDC input. Allows precise lighting level adjustments from building automation systems or wall controllers.
- Auto-sensing current sinking or sourcing. Automatically detects signal type for easy setup.
- Programmable dimming threshold. Lets installers define the lowest brightness level to prevent flicker.
Together, these features streamline installation, reduce inventory complexity, and provide reliable dimming performance in a variety of settings.
How It Works
The LR21F600 can control either a single fixture or an entire branch of lights on one circuit. At 120 volts, it supports up to 600 watts of dimming; at 240–277 volts it handles up to 1,300 watts. This capacity allows larger areas to be controlled with fewer dimmers, reducing both labor and material costs.
It also integrates seamlessly with control systems using a 0–10 VDC analog input. By automatically sensing whether the signal is current sinking or sourcing, it eliminates guesswork and cuts down on installation time.
Setting the Lowest Dimming Threshold
Establishing a minimum brightness level prevents flicker and ensures consistent illumination. With the LR21F600, this process is straightforward:
- During operation, hold the push button for one second to log the current 0–10 VDC value as the minimum threshold.
- Any input above this value turns the lights on; any input below turns them fully off.
This feature gives installers control over dimming behavior tailored to each project’s requirements, saving time and avoiding callbacks.
Important Application Notes
The LR21F600 is designed for 60 Hz systems only and is not compatible with magnetic low-voltage (MLV) loads. It works with many lamp types and ballast drivers rated for phase dimming at the specified voltages. Checking load compatibility before installation ensures optimal performance and longevity.
Real-World Applications
In practice, the LR21F600’s versatility delivers tangible benefits:
- Commercial offices. Control multiple LED fixtures across zones without multiple dimmers.
- Industrial facilities. Use the higher wattage capacity and wide voltage range for large-scale lighting upgrades.
- Schools and universities. Implement smooth dimming in classrooms or auditoriums with a single, flexible device.
- Retrofit projects. Add modern dimming without expensive rewiring or new control infrastructure.
Across these scenarios, the LR21F600 reduces installation time, cuts hardware costs, and prevents costly mistakes.
Benefits for Contractors and Specifiers
Because one model covers three voltage ranges, contractors and distributors can simplify their inventory. The LR21F600’s auto-sensing mode and push-button threshold setting reduce job-site setup time. Larger lighting loads can be controlled with fewer devices, reducing panel space and installation costs. For specifiers, these benefits translate into simpler documentation and less potential for field errors.
Best Practices for Optimal Performance
Before installation, confirm voltage and load ratings to ensure the connected lights do not exceed wattage limits. Follow proper wiring practices and test dimming levels before finalizing the minimum threshold. Match control systems to the dimmer’s 0–10 VDC input for seamless integration and flicker-free performance.
Simple Solutions with Functional Devices
The LR21F600 Phase Dimmer offers a robust, versatile, and easy-to-use solution for modern lighting control. Its wide voltage range, auto-sensing dimming modes, and programmable threshold make it a reliable choice for contractors, engineers, and facility managers alike.
Functional Devices continues to design and manufacture innovative components that simplify building automation, reduce installation time, and improve system performance. Browse the full range of dimmers and control devices or contact us to find the right solution for your project.
