The smart relay vs. standard relay question comes up more often as BAS technology gets more sophisticated. For most relay output applications in HVAC and building automation, a quality standard relay is exactly the right tool: reliable, simple, fast to install, and easy to troubleshoot. For specific scenarios where network visibility, remote configuration, or decentralized control logic matters, a smart relay changes the equation.
What Is a Standard Relay?
A standard relay is an electromechanical switch: a coil, a set of contacts, and a housing. When a control voltage energizes the coil, the contacts open or close to switch the load circuit. That's it. No network address, no protocol stack, no firmware.
Standard relays do one job extremely well: they translate a control signal into a physical switching action, with complete electrical isolation between the control circuit and the load circuit. They are reliable, protocol-agnostic, and straightforward to install, wire, and replace.
In BAS and HVAC work, standard relays are the dominant switching device because the vast majority of relay output applications don't require anything more. A BAS controller sends a binary output signal—24VAC or a dry contact—the relay coil responds, the contacts close, the load switches. The controller handles the logic; the relay handles the switching.
RIB® (Relay-In-a-Box®) relays from Functional Devices, Inc. are standard relays in this sense: purpose-built, prewired, enclosed assemblies designed for fast, reliable field installation. They're protocol-agnostic at the hardware level—the coil responds to voltage, not network commands—which makes them compatible with every BAS platform, every controller brand, and every control voltage in commercial building use.
What Is a Smart Relay?
A smart relay (also called an intelligent relay or network relay) adds communication capability to the basic relay function. Instead of—or in addition to—a coil input, a smart relay has a network interface that allows it to receive commands, report status, and exchange data directly over a building automation network.
In practical terms, this means a smart relay can:
- Receive an on/off command over BACnet MS/TP without requiring a physical control wire from a controller
- Report contact status, load state, and in some cases current draw back to the BAS
- Be addressed, configured, and monitored from the BAS supervisor
- Operate as a standalone field device with simple local control logic, reducing dependence on a centralized controller
Functional Devices offers BACnet-compatible RIB® relays—such as the RIBTW2401B-BC and RIBMNW24B-BCAI—under their Intelligent Field Devices category. These devices support standard BACnet objects (binary input, binary output, analog input, analog output, accumulator, and device) and retain the compact, prewired RIB® form factor while adding a BACnet MS/TP network interface.
It's worth being precise about terminology: "smart relay" can mean different things in different contexts. In building automation, it almost always means a relay with a network communication interface (BACnet, Modbus, etc.). In industrial automation, "smart relay" sometimes refers to a compact programmable logic controller (PLC) with built-in I/O. These are different things—the BAS context is the relevant one here.

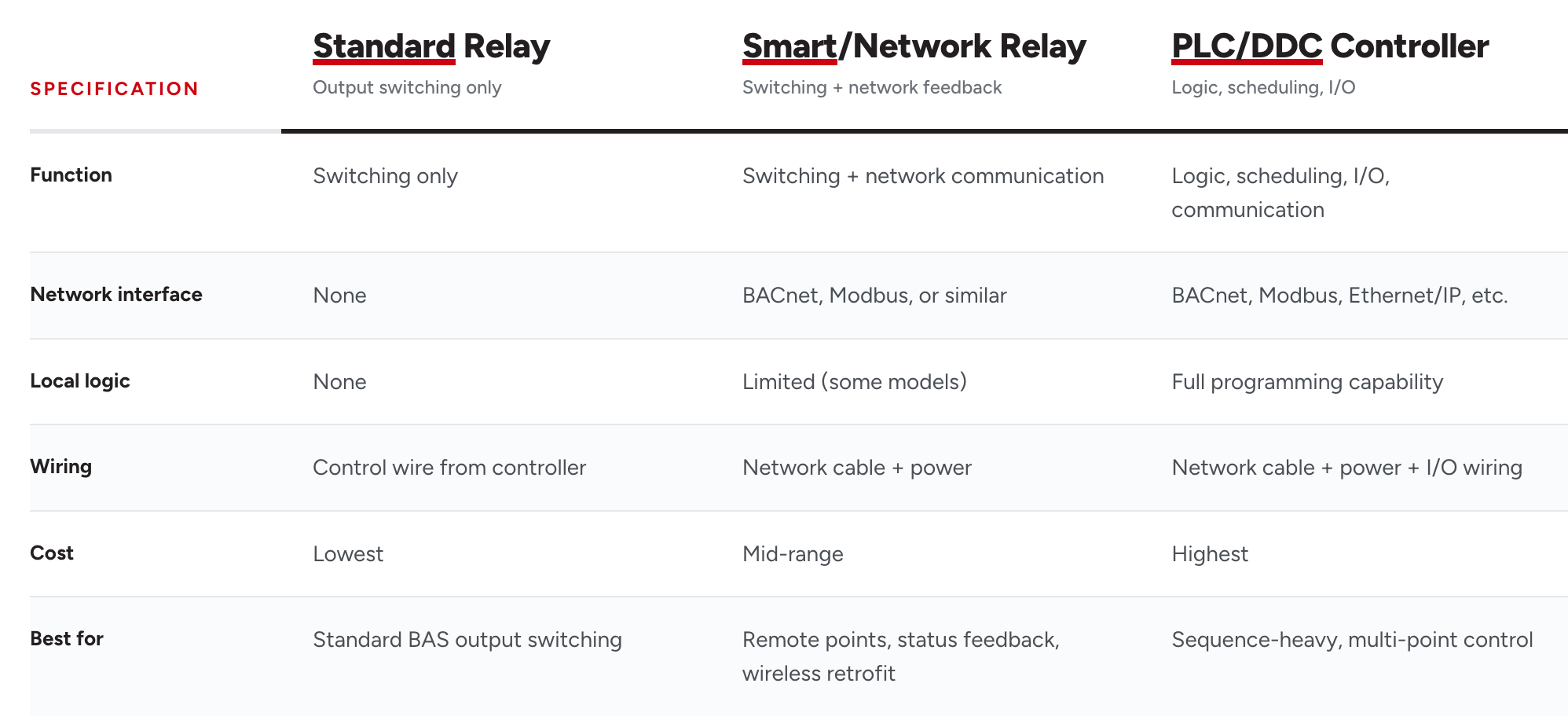

Smart Relay vs. PLC vs. Standard Relay
The practical dividing line is that if the relay is being driven by a BAS controller that already handles the logic and just needs to switch a load, a standard relay is almost always the right answer. If the relay needs to operate at a network point where running a control wire is impractical, or where status feedback at the device level adds real value, a smart relay earns its cost premium. If the application involves complex sequencing, multi-zone scheduling, or significant I/O beyond simple switching, a full DDC controller is the right tool—and standard relays become the output devices for that controller.
Standard Relay: When It's Enough
For the vast majority of BAS relay output applications, a standard relay is the correct specification. Consider the typical building automation deployment: a DDC controller drives dozens of binary outputs: fan coil units, damper actuators, lighting zones, exhaust fans. Each output runs a control wire to a RIB® relay. The relay switches the load. The controller handles all scheduling, override logic, and status monitoring through separate input points.
In this architecture, adding network intelligence to every relay would be redundant, costly, and would create unnecessary network overhead. The controller already has the intelligence; the relay's job is to be fast, reliable, and invisible.
Standard relays are also the right call when:
- The control wire run is short and practical
- The application is straightforward on/off switching with no status feedback requirement
- The installation needs to be simple, fast, and easy to troubleshoot in the field
- The BAS platform handles all sequencing and scheduling centrally
- Budget and simplicity are priorities and the application doesn't justify the premium
The RIB® standard relay lineup—RIBU1C, RIB2401B, RIB24P30—covers the vast majority of these applications with a UL Listed, prewired assembly that installs quickly and lasts reliably in the field.
Smart Relay vs. Standard Relay: BAS Integration Considerations
The decision to specify a smart relay is most justified when the installation context creates real value from network-level device intelligence. The scenarios where it makes sense include:
Remote or Distributed Points Without Practical Control Wire Runs
In a large facility where a relay output point is physically far from the nearest controller, running a control wire can be expensive or impractical. A BACnet relay that's addressed on the MS/TP trunk eliminates that wire run, replacing it with a network connection that may already be present.
Status Feedback Without Separate Input Wiring
A standard relay switches the load but doesn't report back. If you need to verify load status at the BAS level—confirming a fan is on, not just that the output was commanded on—a smart relay with binary input capability provides that feedback over the same network connection, without requiring a separate input wire back to the controller.
Decentralized Control for Simple Applications
Some BACnet-compatible RIB® models include analog input capability (such as the RIBMNW24B-BCAI), allowing the relay itself to accept a sensor input and respond locally, without requiring a command from a centralized controller. For simple applications like a unit heater responding to a local temperature sensor, this can reduce panel density and cabling complexity significantly.
Expanding a BAS Network Without a Full DDC
Adding a few new switching points to an existing BAS doesn't always justify the cost of a new DDC controller. A BACnet-compatible relay that addresses directly on the MS/TP trunk can add those points to the network at a fraction of the cost.
Wireless Retrofit Applications
Functional Devices' EnOcean-compatible products allow wireless control signals to drive hardwired relay switching points—useful in retrofits where running new control wiring is disruptive or cost-prohibitive.
Cost-Benefit in Real Applications
Smart relays cost more than standard relays—sometimes significantly more. Before specifying them, it's worth being honest about whether the application justifies that premium.
The case is strong when:
- The control wire run would cost more than the premium for a network relay
- Status feedback is genuinely required for the application (not just nice to have)
- The point is truly isolated from the nearest controller and network extension is practical
- The facility has BAS staff who will actually use the device-level visibility a smart relay provides
The case is weak when:
- The relay is a standard output point on a controller that already handles logic and monitoring
- Status feedback isn't required or is handled at the controller input level
- The installation is a straightforward field switching application with a short control wire run
- Budget is a constraint and the application works perfectly with a standard relay
For a typical commercial BAS deployment, the majority of relay output points are best served by quality standard relays. Smart relays earn their premium in specific scenarios—remote points, status-feedback requirements, wireless retrofits, and decentralized control applications. Over-specifying smart relays across a whole system adds cost and network complexity without proportional value.
RIB® Product Options Across the Spectrum
Functional Devices offers RIB® relay products across the full range from standard to network-enabled:
Standard RIB® Relays
RIBU1C (10A SPDT), RIB2401B (20A SPDT), RIB24P30 (30A DPDT). UL Listed, prewired, fast to install. The right answer for the majority of BAS output switching applications. Browse the RIB® relay lineup.
BACnet-Compatible RIB® Relays
RIBTW2401B-BC (20A relay + BACnet MS/TP + binary input), RIBMNW24B-BCAI (relay + BACnet + analog input for decentralized control). Support standard BACnet objects. Addressed directly on the MS/TP trunk. Browse the Intelligent Field Devices category.
The full RIB® Trifecta—Relays, Current Sensors, and Power Supplies—gives integrators and OEM engineers a cohesive set of field devices that work together across HVAC, BAS, lighting, and emergency applications. When you're specifying relay output points, current sensors for equipment feedback, and power supplies for panel builds, the RIB® lineup covers all three from a single manufacturer.
For help selecting the right relay for your application, contact Functional Devices or find an authorized distributor in your region.
Frequently Asked Questions
What is a smart relay in building automation?
In building automation, a smart relay (also called an intelligent relay or network relay) is a relay with a network communication interface—typically BACnet MS/TP or Modbus RTU—that allows it to receive commands, report status, and exchange data directly over a BAS network. It performs the same switching function as a standard relay but adds network-level visibility and addressability.
When does a smart relay make sense vs. a standard relay?
A smart relay makes sense when running a control wire to the relay is impractical or expensive, when device-level status feedback is required, or when the application benefits from decentralized control logic at the relay itself. For standard BAS output switching where a controller drives the relay via a control wire, a quality standard relay is almost always the right answer.
What is the difference between a smart relay and a PLC?
A PLC (programmable logic controller) is a full control device with programmable logic, multi-point I/O, and network communication. A smart relay adds network communication to the basic relay function but has limited or no local programming capability. For sequence-heavy, multi-point control applications, a PLC or DDC controller is the right tool—with standard relays as the output devices. For simple switching with network visibility, a smart relay is a cost-effective middle ground.
Do Functional Devices BACnet relays work with any BAS platform?
Functional Devices BACnet-compatible RIB® relays use standard BACnet MS/TP and standard BACnet objects (binary input, binary output, analog input, analog output, accumulator, device), making them compatible with any BACnet-compliant BAS platform: Tridium Niagara, Distech Controls, and others. Platform Implementation Conformance Statements (PICS) are available for download on the product pages.
Are standard RIB® relays compatible with BACnet controllers?
Yes. Standard RIB® relays are protocol-agnostic—the coil responds to a control voltage signal (24 VAC, dry contact, etc.), not a network command. They work with any BAS controller that provides a binary output signal, regardless of what protocol the controller uses for its network communication.
Is it worth specifying BACnet relays for every point in a BAS?
Generally, no. Over-specifying smart relays across all relay output points adds cost and network complexity without proportional value. The majority of relay output points in a typical commercial BAS are best served by quality standard relays driven by a DDC controller. Smart relays earn their premium for specific remote, wireless, or status-feedback scenarios.
